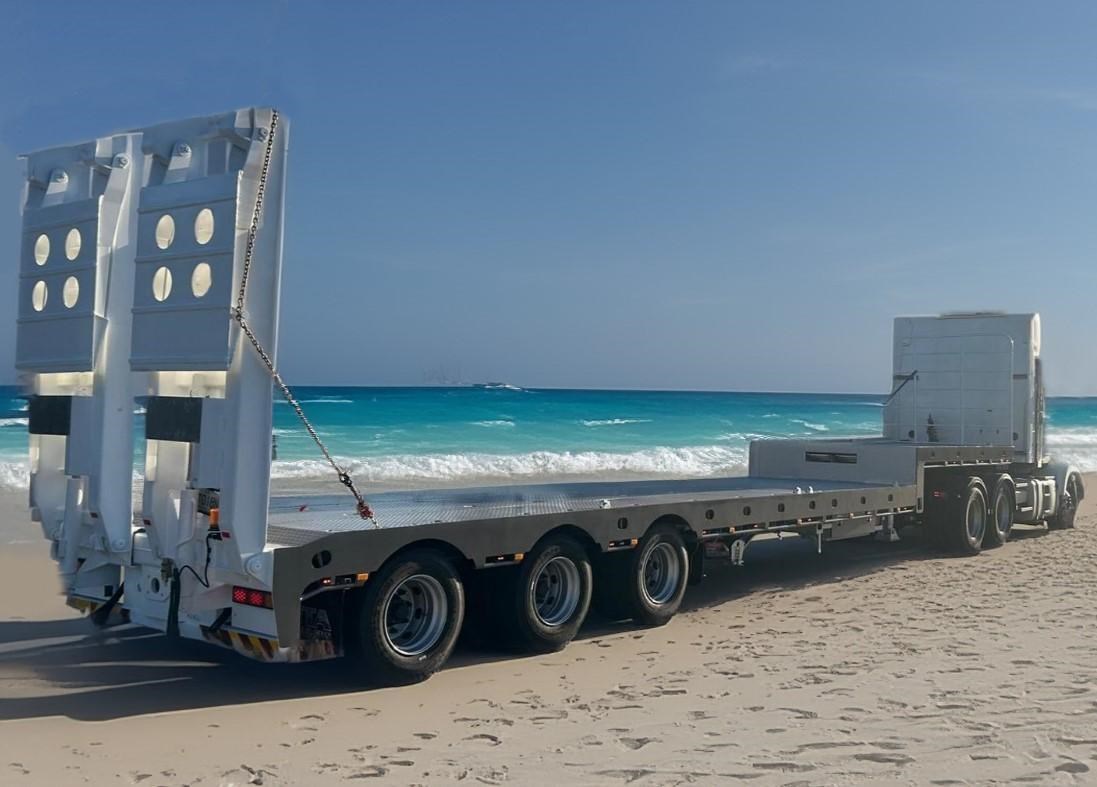

2026 UTA TRI-AXLE DROP DECK WIDENER SEMI TRAILER

UTA DROP DECK WIDENER
NEW 2026
45FT Tri-Axle 44 Ton ATM Rated Semi-Trailer

Expertly designed by our team with over 20 years of manufacturing transport equipment
High Quality Construction
Feel free to call our team () anytime for more information.

SPECIFICATIONS
TARE WEIGHT: 11.5 Ton

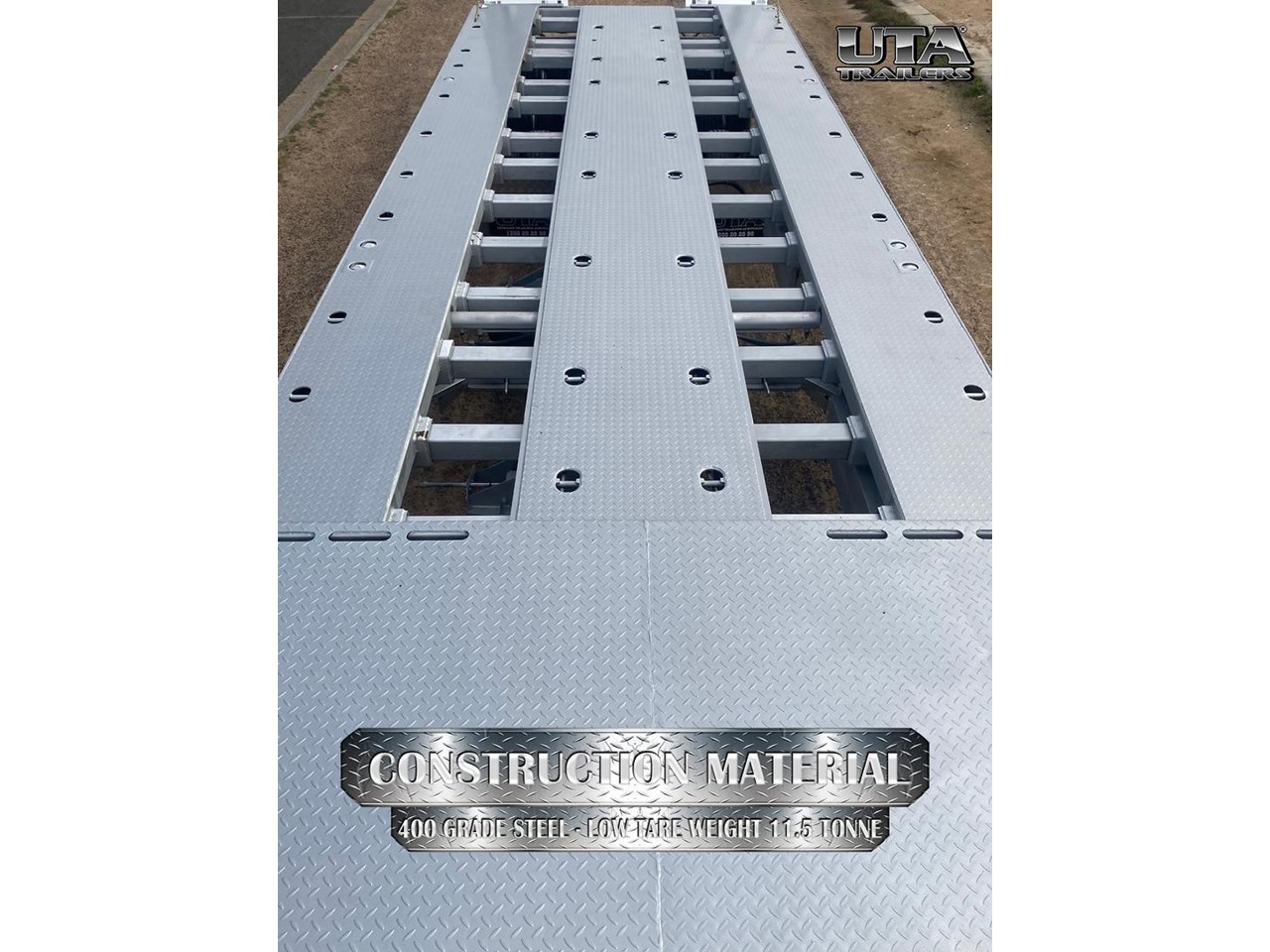

CONSTRUCTION: High Tensile Steel - 12 SHS 8mm Thick Beams for Widening (Will support up to 30 Ton Machine)

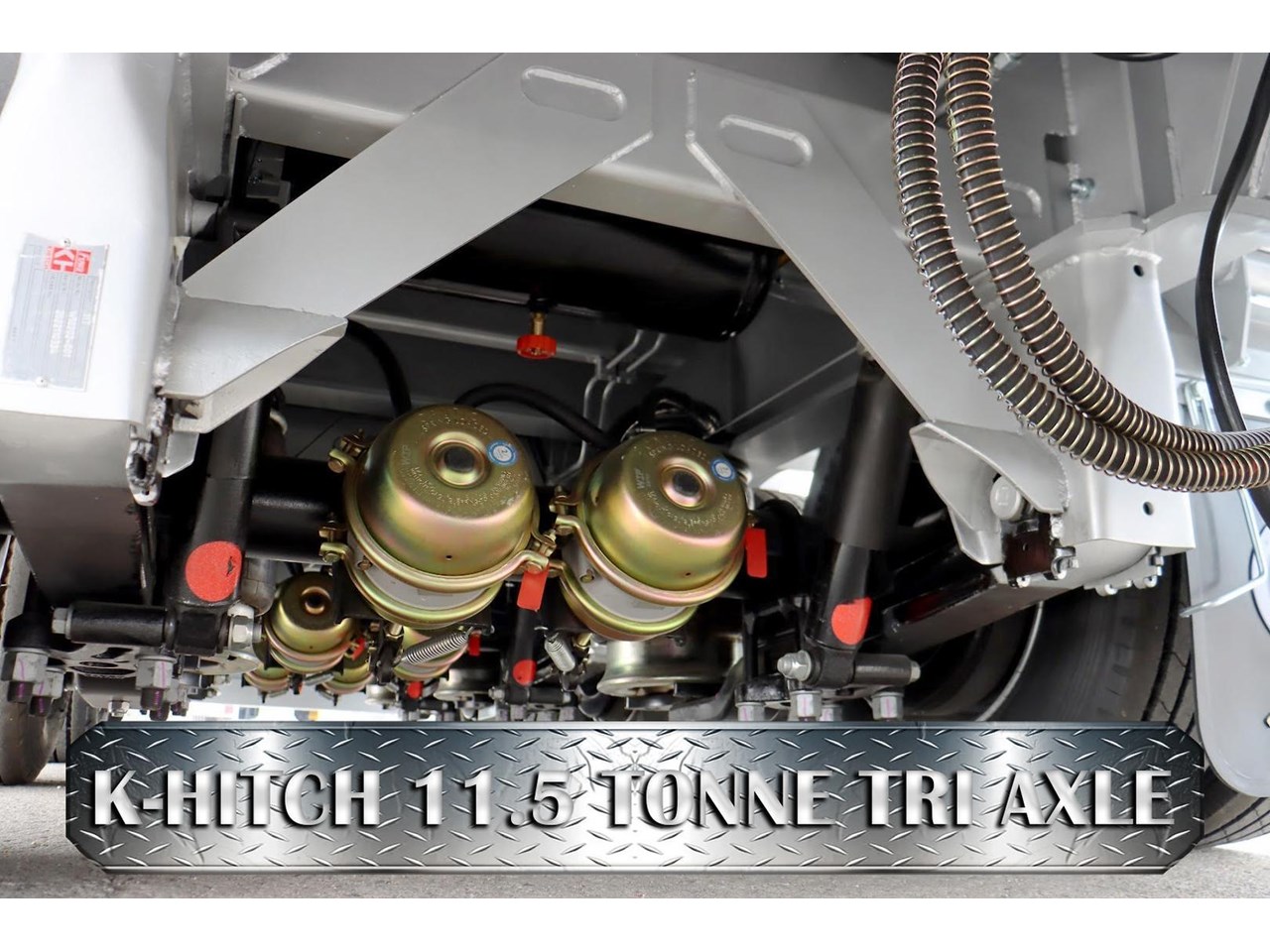

AXLE TYPE: K-Hitch 11.5 Ton Tri Axle 16mm Wall Thickness with Parallel Bearings

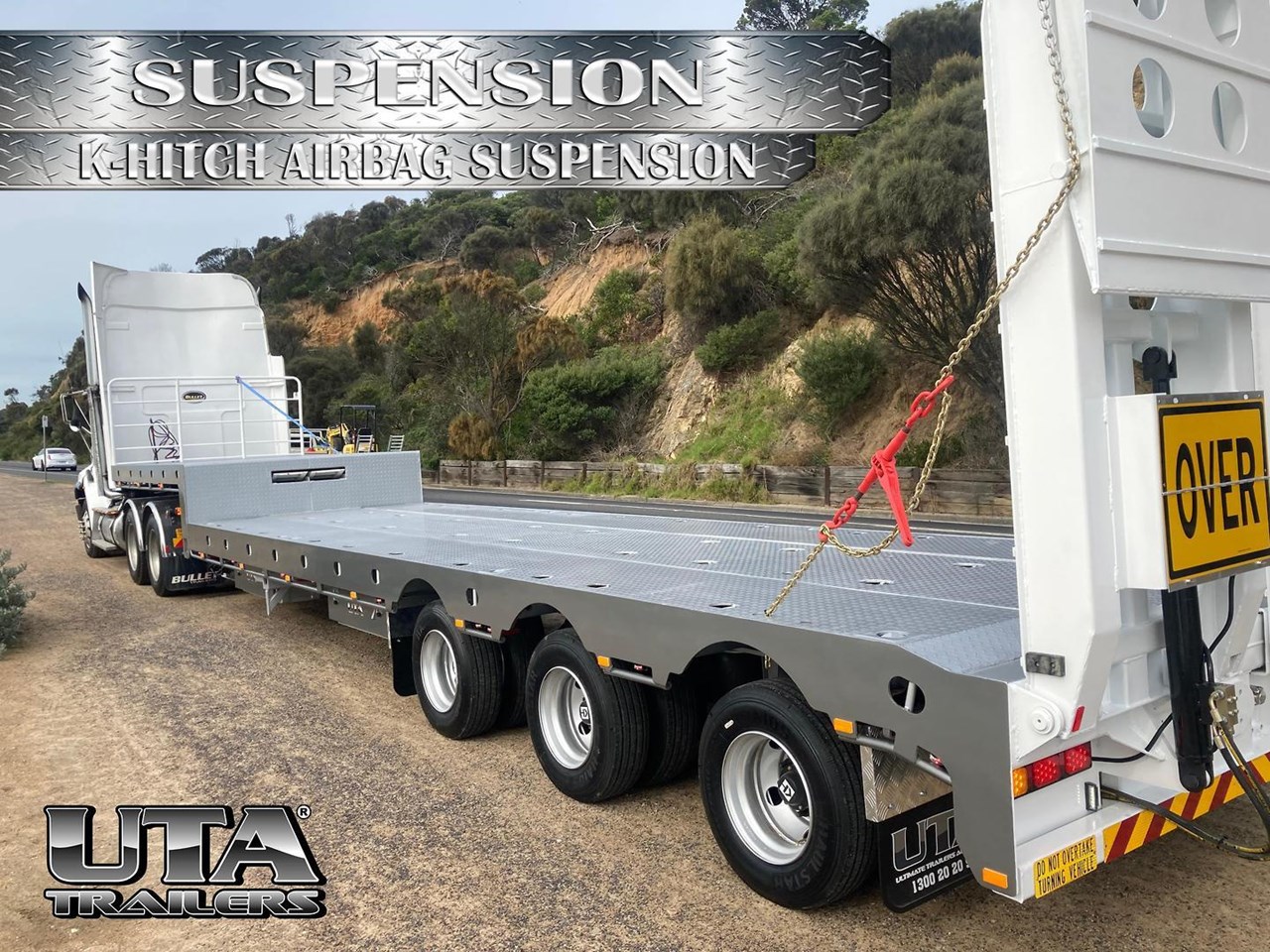

SUSPENSION TYPE: K-Hitch Airbag Suspension

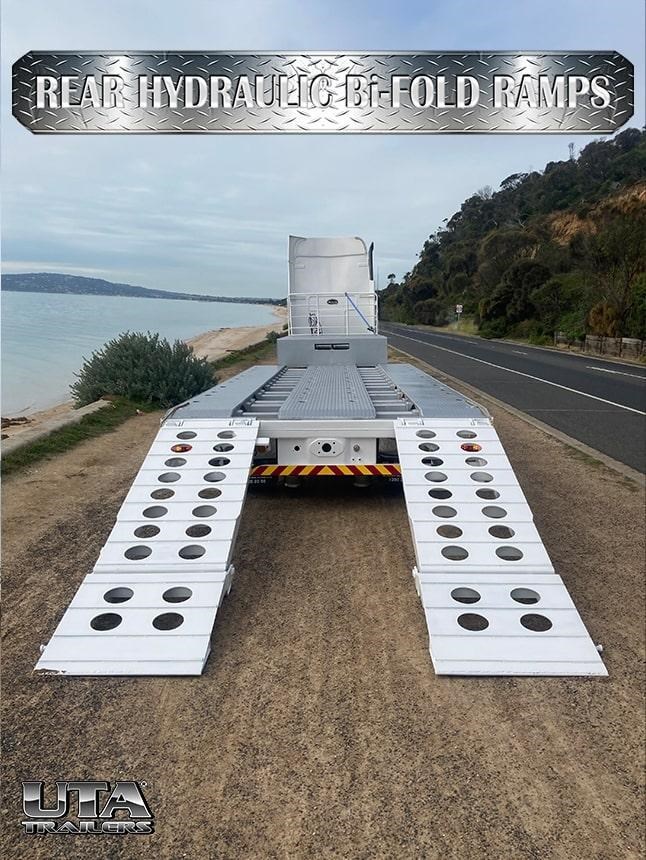

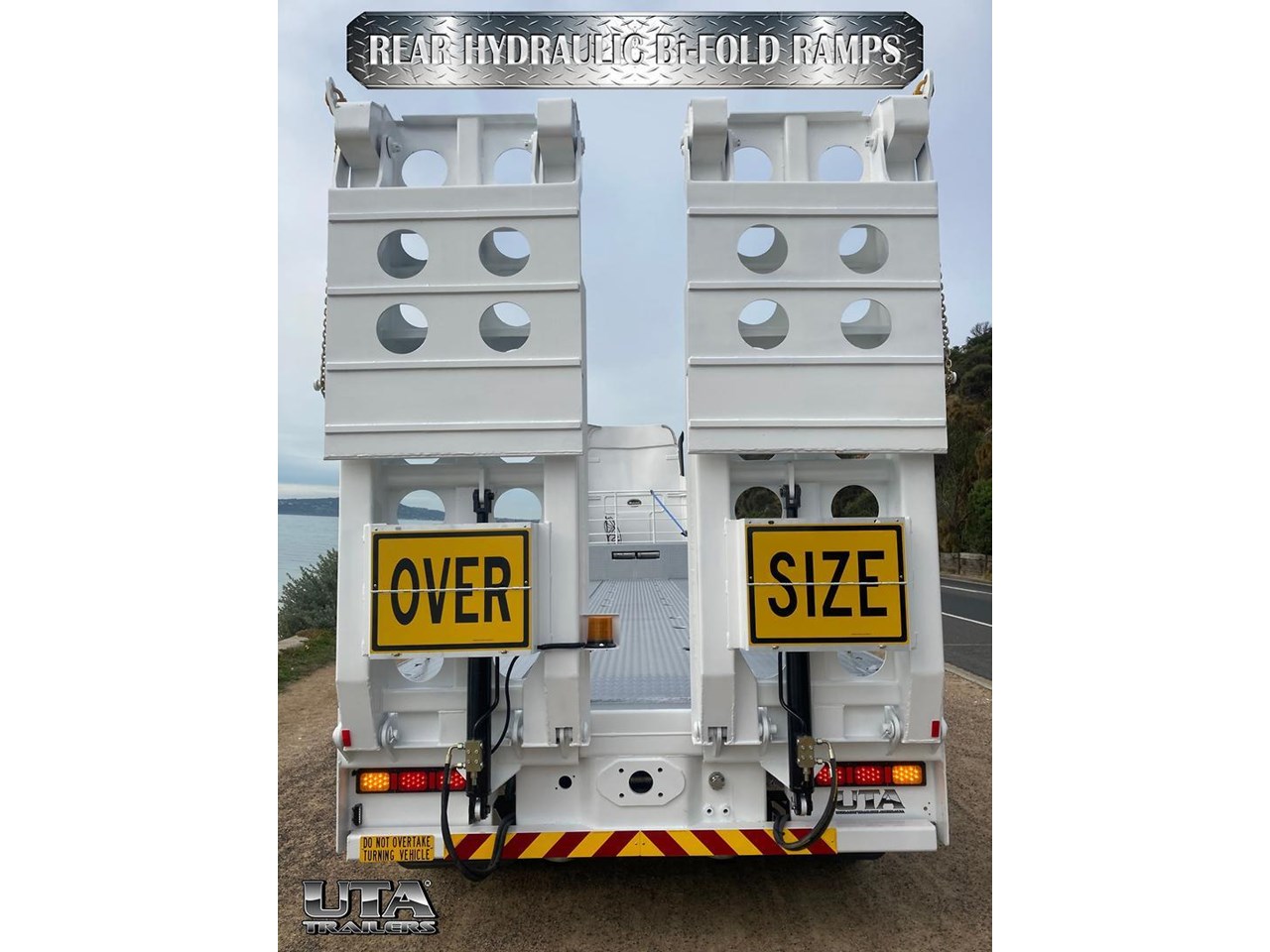

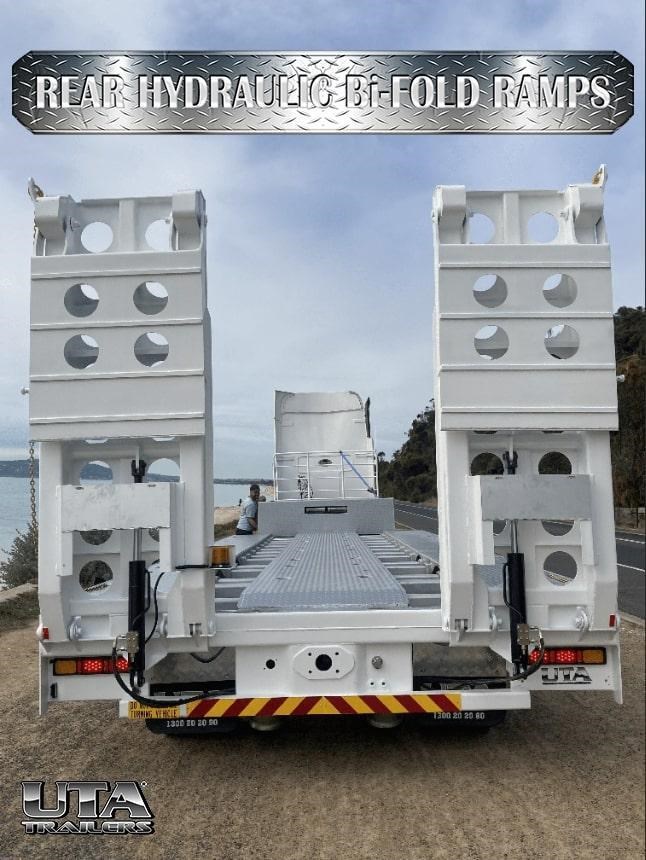

RAMP TYPE: 4-Metre Hydraulic Bi-fold Ramps 11 Degree Loading Angle

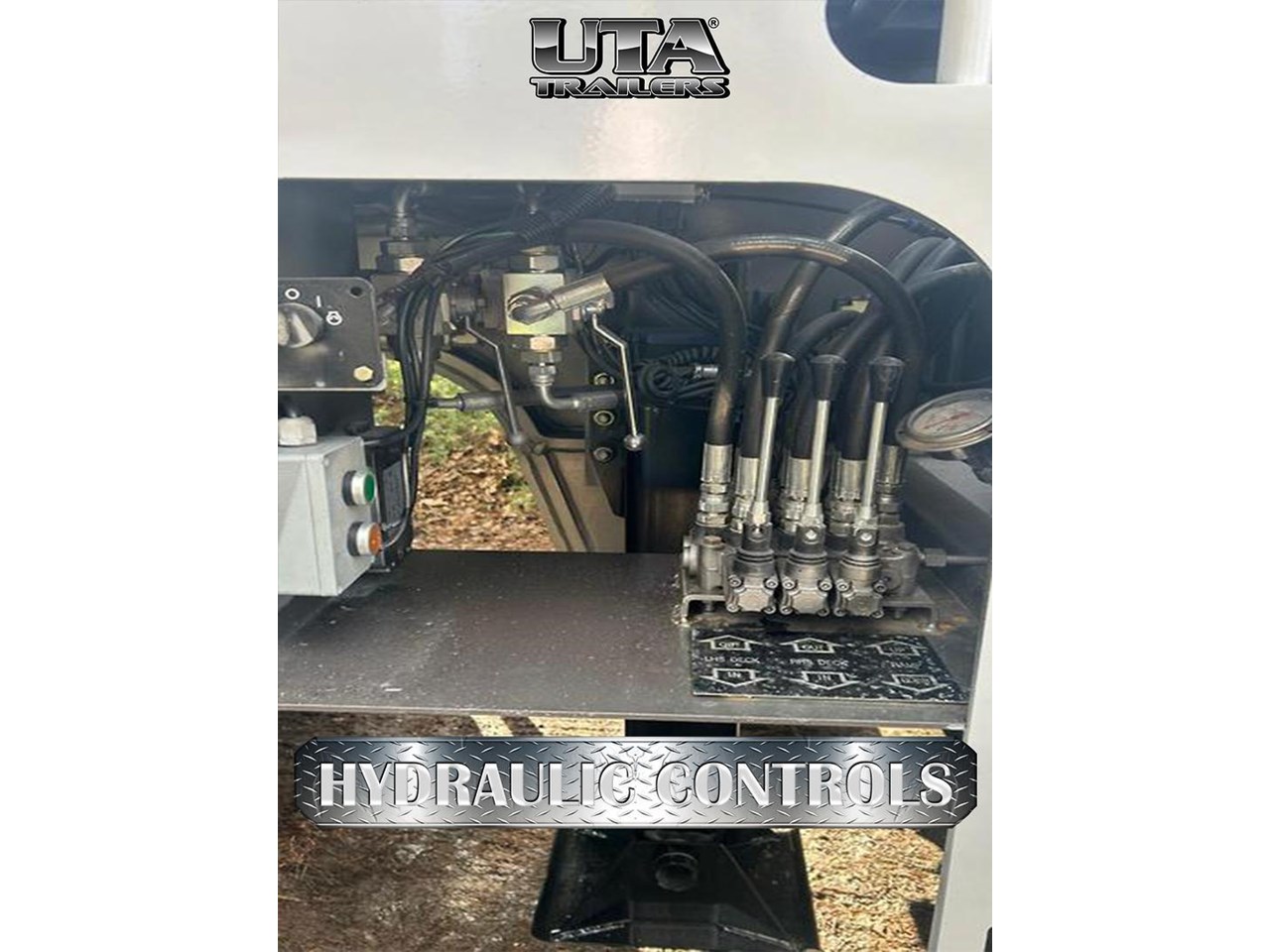

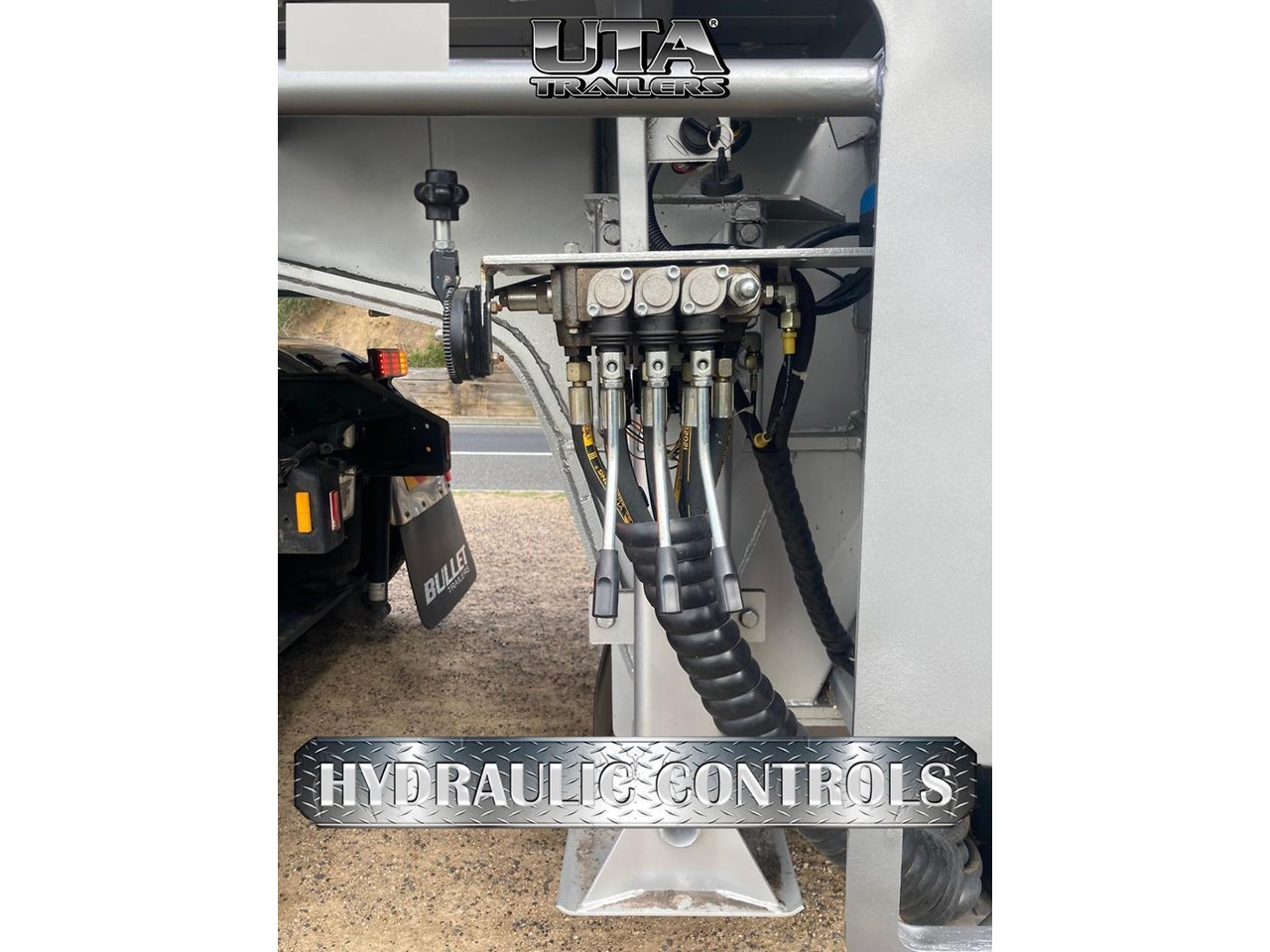

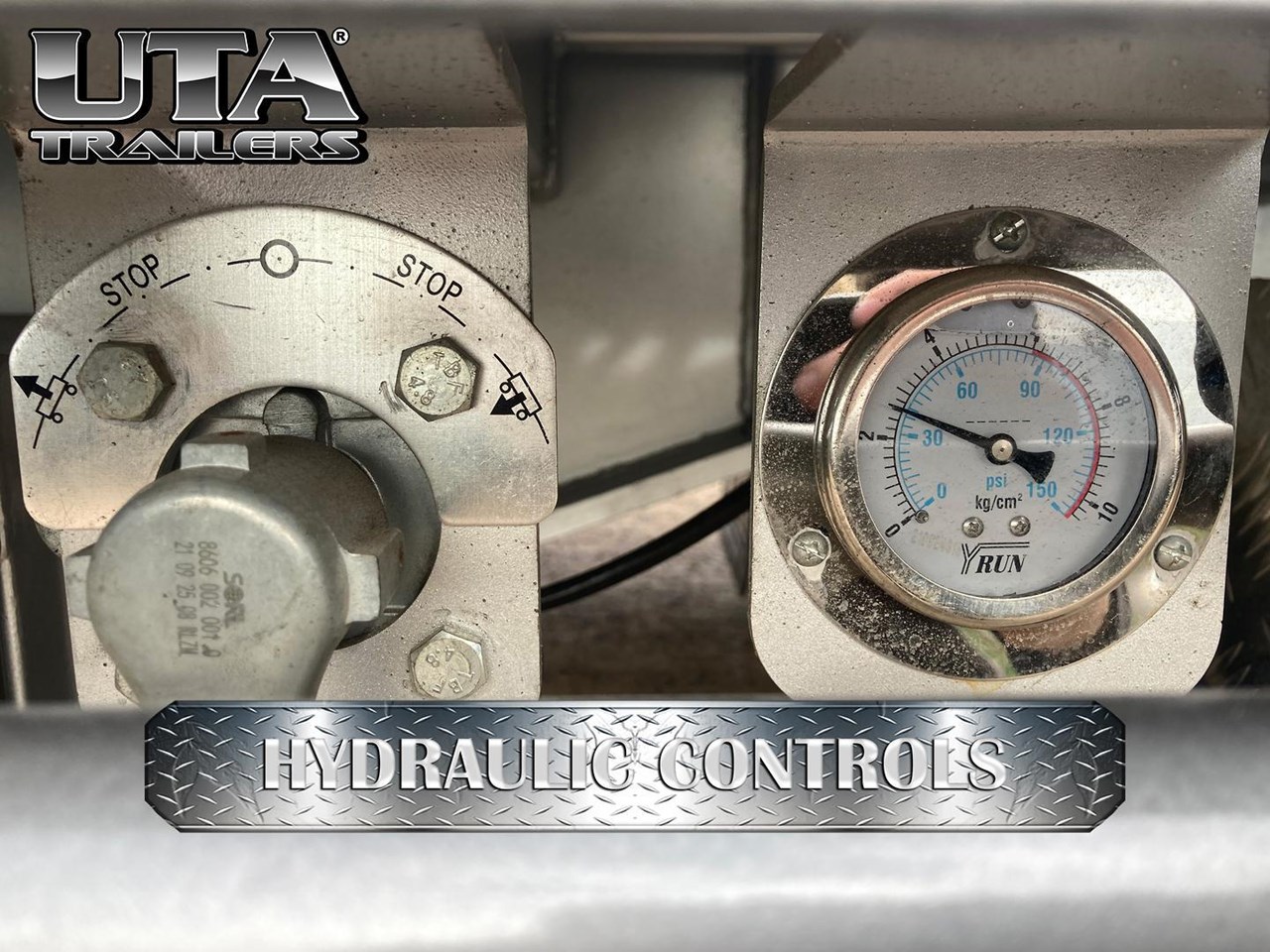

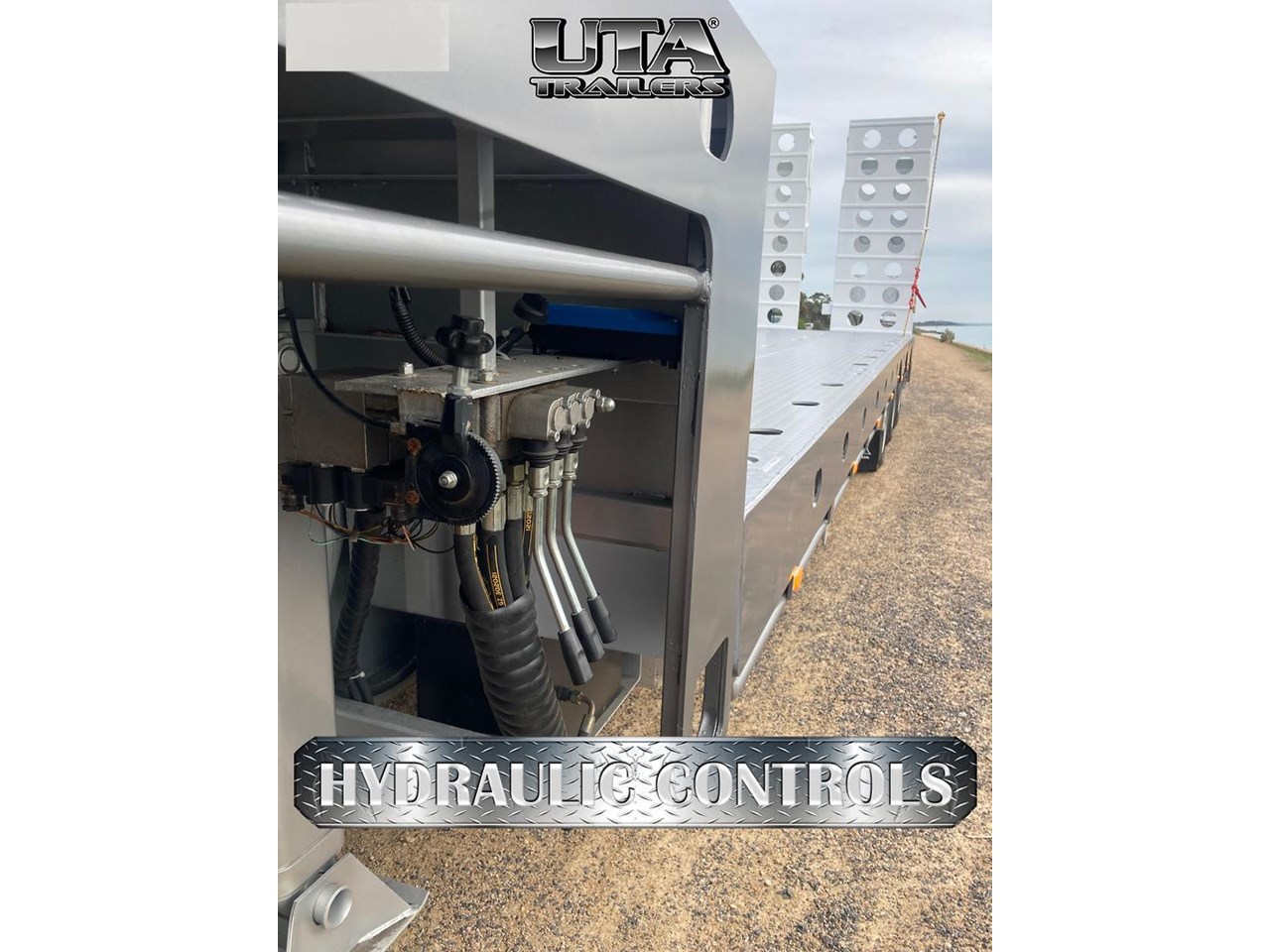

HYDRAULIC MOTOR: Electric Start 10HP Diesel Motor

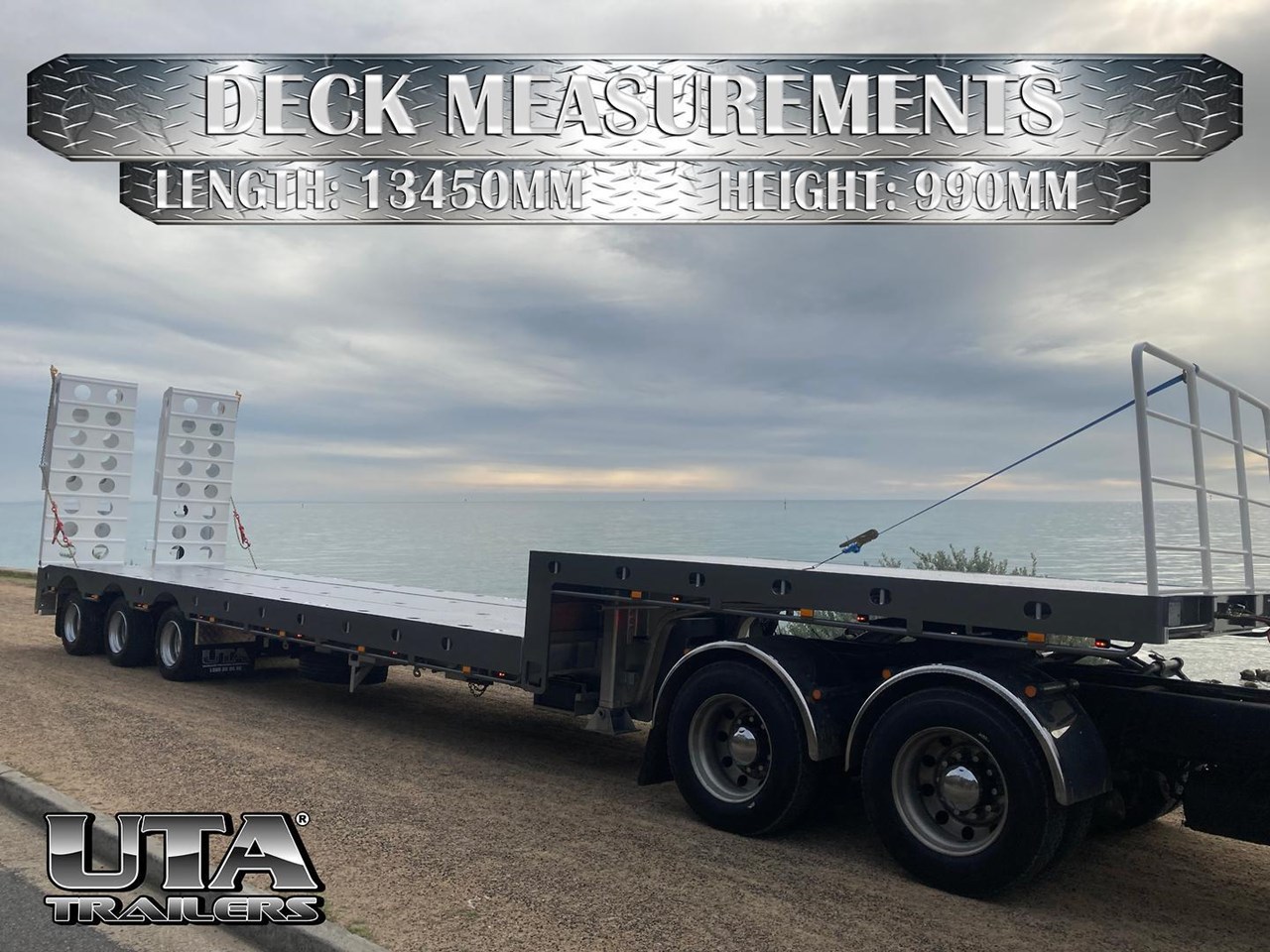

DECK HEIGHT: 920mm/990mm
TOTAL DECK LENGTH: 13700mm
TOP DECK LENGTH: 3800mm
BOTTOM DECK LENGTH: 9900mm

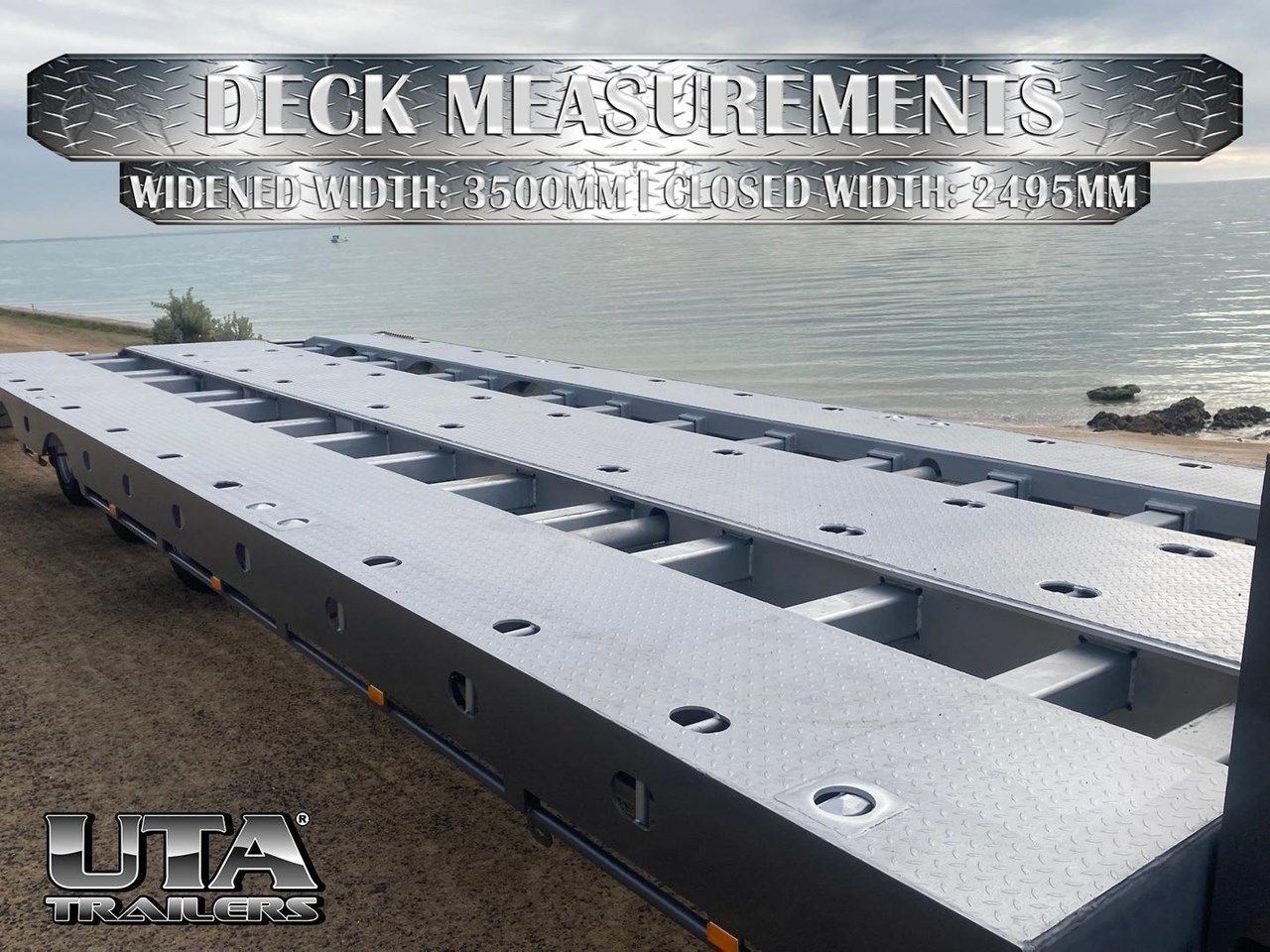

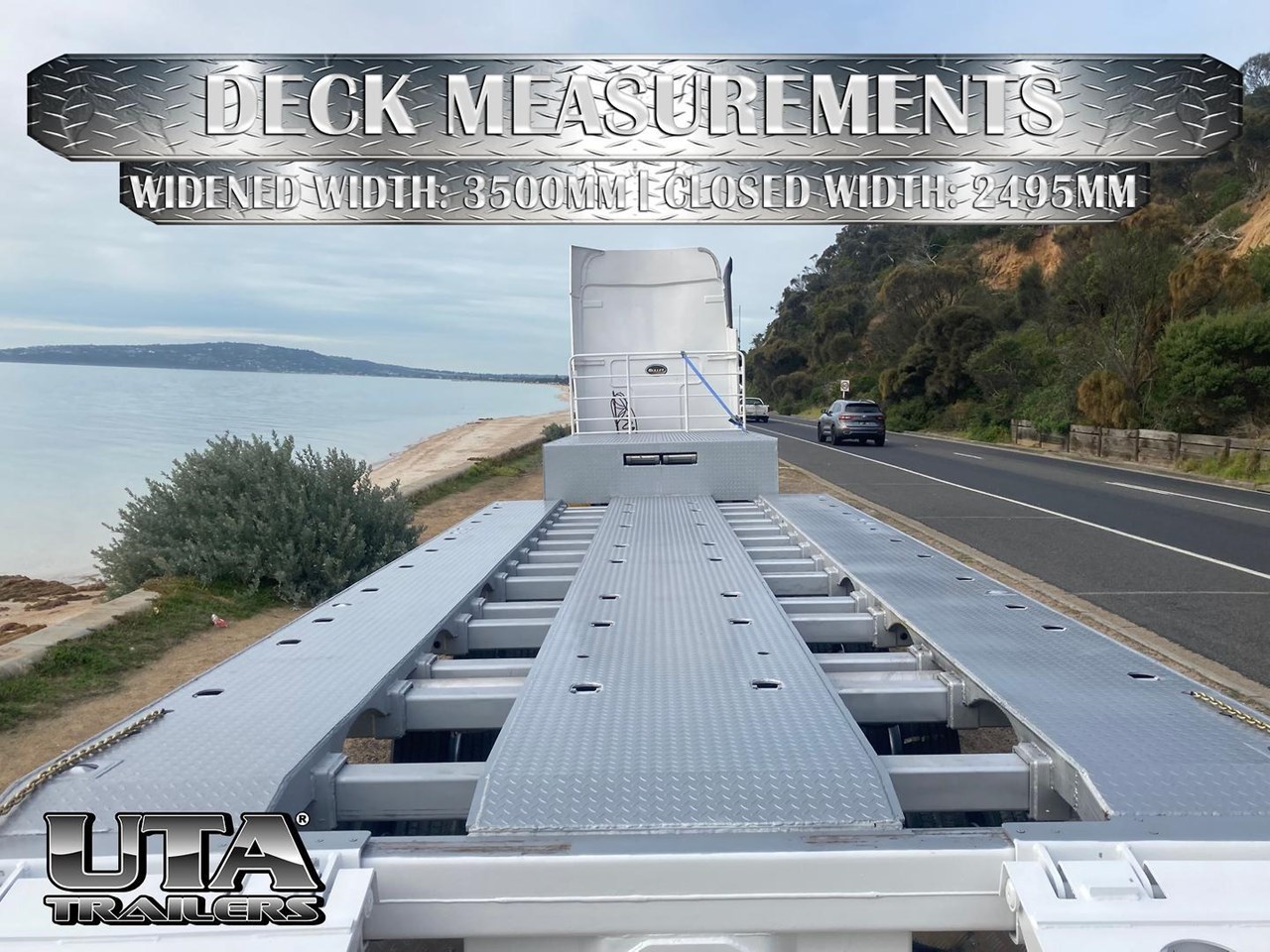

DECK WIDTH: 2500mm Variable to 3500mm
BRAKING SYSTEM: EBS Braking System with ROPS (Roll Over Protection System)
WHEELS: 17.5 Steel Rims
TYRES: 235/70R

FEATURES:
- High Tensile Re-enforced Checker Plate Floor
- JOST 2 Speed Landing Legs
- 2 Position Bolt-In King Pin - 2 or 3 inch
- Wireless Handheld Remote Control
- 3-Way Container Pins and Pedestals - Fit 2 x 20ft or 1 x 40ft Container
- Slide out Ramps to Top Deck
- 34 Chain Bars in-Deck
- 1 x Spare Wheel

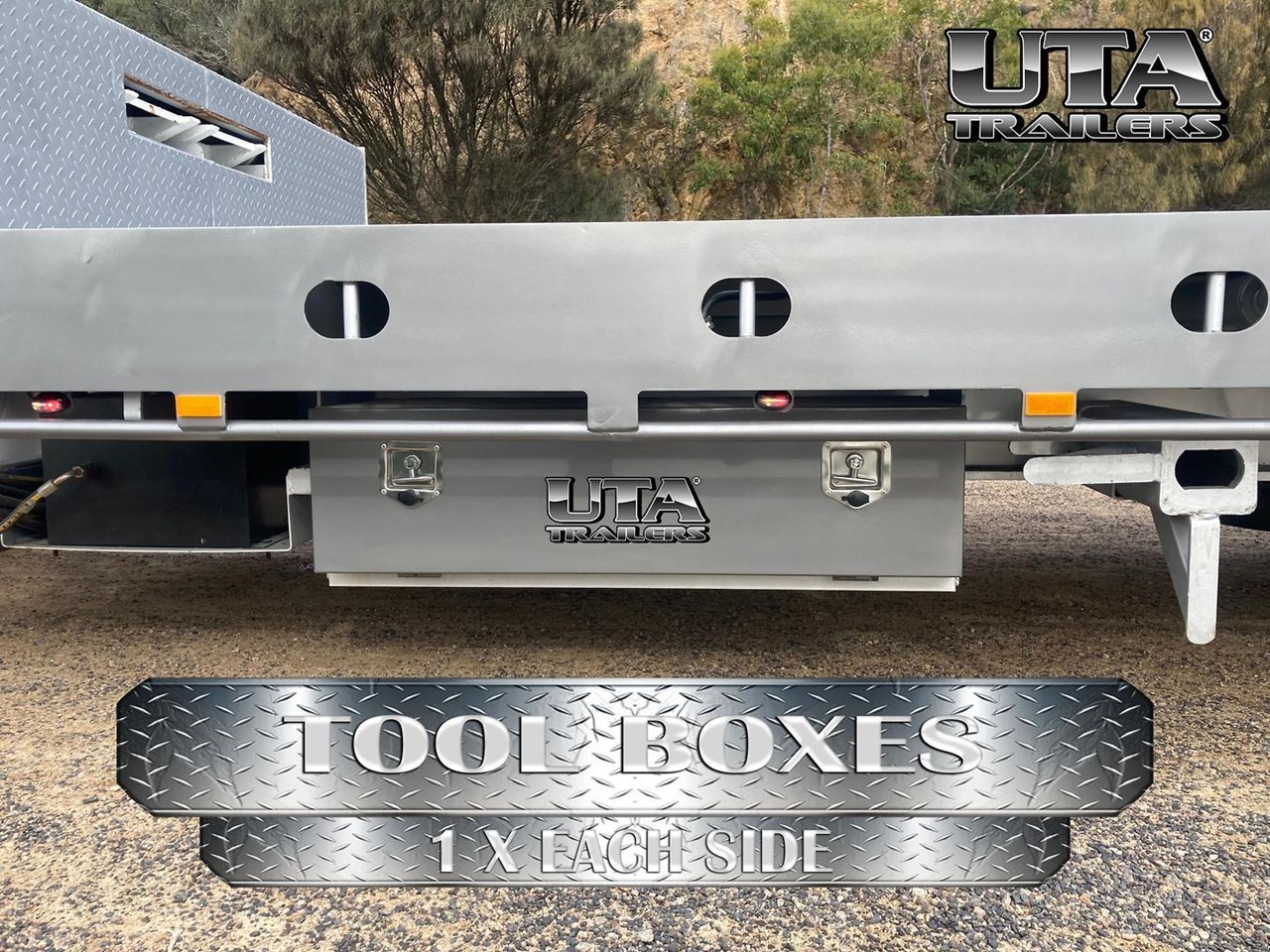

- 2 x Tool Boxes
- Dual Wheel Carrier
- Multi Volt LED Lighting System
- 2 Pac Paint Finish (Your Choice of Colour)
- OVER SIZE Road Signage
- Flashing Beacon

OPTIONS:
- 17.5 or 19.5 Steel/Alloy Wheels

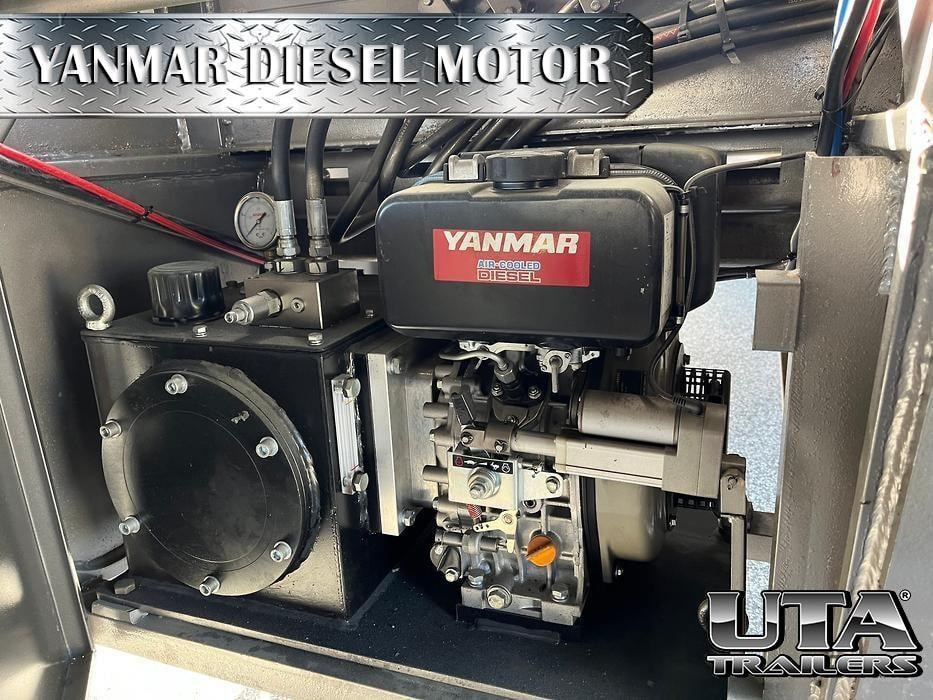

- Yanmar Diesel Motor & PTO Power Pack
- 12V Electric Over Hydraulic Power Pack with Anderson Plug to Front
- Road Train Approval
- Ring Feeder
- Lay Flat Ramps


PRICE: $82,900 + GST
Registration Available + GST
